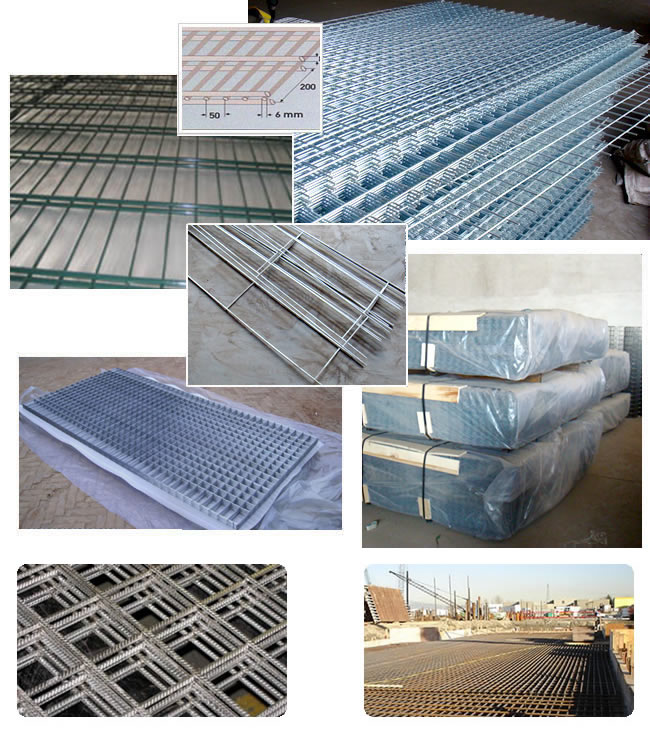

 Welded Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
Assortments available:
Welded Stainless Steel Wire Mesh Panels
Galvanized Welded Mesh Panels
Hot-dip Zinc Plating Welded Mesh Panels
Property:
Welded wire mesh panels enjoy such properties as corrosion resistance, aging resistance, sunshine resistance and weather resistance.
Forms of corrosion resistance include electric galvanizing, hot-dipp galvanizing, PVC spraying and PVC coating.
| Mesh Size |
Wire Diameter |
Panel Width & length |
| In MM |
In Inch |
MM |
12.7mm |
1/2Inch |
1.0mm - 2.0mm |
3Feet x 6Feet
4Feet x 8Feet
5Feet x 10Feet
1M X 2M 1.5M X 3M
2M X 4M
Other panel sizes can also be made according to request |
25.4mm |
1Inch |
1.5mm - 3.5mm |
31.8mm |
1 1/4Inch |
2.0mm - 4.0mm |
38.1mm |
1 1/2Inch |
2.0mm - 5.0mm |
50.8mm |
2Inch |
2.0mm - 6.0mm |
76.2mm |
3Inch |
3.0mm - 7.0mm |
101.6mm |
4Inch |
3.0mm - 8.0mm |
127mm |
5Inch |
4.0mm - 9.0mm |
152.4mm |
6Inch |
4.0mm - 10.0mm |
|
